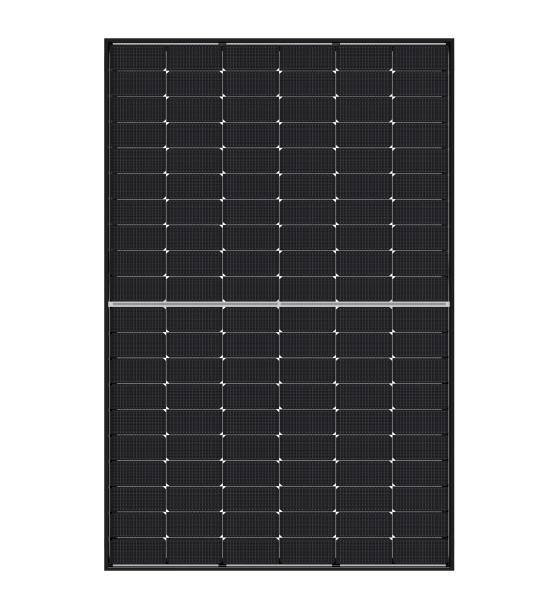

Jinko Solar Tiger Neo 510W

Solar Panel

Jinko Solar Tiger Neo 510W

The Jinko Solar Tiger Neo 510W JKM510N-60HL4-V is a high-performance N-type monocrystalline solar panel designed to deliver powerful and reliable energy generation for residential and commercial solar installations. Featuring advanced N-type cell technology, a 120 half-cell configuration and module efficiency of up to 23.60%, this panel generates more power from available rooftop space while maintaining dependable performance in changing weather conditions. Its low temperature coefficient helps minimise power loss during hot Australian days, while the durable anodised aluminium frame and IP68-rated junction box provide long-term protection against demanding outdoor conditions.

  • 510W Output with 23.60% Efficiency
  • N-Type TOPCon Technology
  • 25-Year Product & 30-Year Power Warranty

Jinko Solar Tiger Neo 510W

Efficient rooftop solar generation with N-Type TOPCon technology, durable construction and long-term warranty protection.

Overview

The Jinko Solar Tiger Neo 510W uses N-Type TOPCon cell technology to deliver efficient solar generation for rooftop installations. Its technology supports improved performance in lower light conditions, helping the panel generate electricity as sunlight levels change throughout the day. Jinko’s HOT 3.0 technology further supports module efficiency and reliability. jinkosolar.com.au

The Tiger Neo range combines optimised temperature performance with measures to reduce light-induced degradation. These characteristics help address two factors that influence solar generation over time: rising cell temperatures and gradual changes in cell performance. Actual energy production still depends on the roof orientation, shading, local weather and overall system design. jinkosolar.com

For long-term ownership, this model carries a 25-year product warranty and a 30-year linear power warranty under Jinko’s applicable Australian terms. The power warranty limits degradation to 1% in the first year and 0.40% annually thereafter, with at least 87.4% of the original rated power warranted at year 30. This covers measured module performance under specified conditions, rather than guaranteeing a household’s annual electricity generation.

Technical Specifications

Model number
JKM510N-60HL4-V
Rated maximum power
510W
Module efficiency
23.60%
Cell technology
N-Type monocrystalline TOPCon
Number of cells
120 — 60 × 2
Maximum power voltage — Vmp
37.15V
Maximum power current — Imp
13.73A
Open-circuit voltage — Voc
44.51V
Short-circuit current — Isc
14.33A
Maximum system voltage
1,500V DC
Front glass
3.2mm tempered, low-iron glass with anti-reflection coating
Junction box
IP68
Product warranty
25 years
Linear power warranty
30 years

Suggested Products

AIKO NEOSTAR 500W

The AIKO NEOSTAR 2S60 500W AIKO-A500-MAH60Mb is a premium, high-performance solar panel designed to deliver reliable energy generation for residential and commercial solar installations. Powered by AIKO’s advanced N-type ABC cell technology, this panel produces up to 500W of power with a module efficiency of 22.6%. Its front-grid-free cell design provides a clean, modern appearance while maximising the active light-capturing area of the panel.

Jinko Solar Tiger Neo 475W

The Jinko Solar Tiger Neo 475W JKM475N-48HL4M-DV is a premium, high-efficiency solar panel designed for residential and commercial solar installations. Built with advanced N-type TOPCon cell technology, the panel delivers an impressive module efficiency of up to 23.77%, helping generate more electricity from available rooftop space. Its half-cut cell design, SMBB technology and improved current collection support dependable energy production and enhanced performance in low-light conditions.

AIKO NEOSTAR 540W

The AIKO NEOSTAR 3P+60 540W AIKO-A540-MCE60Dw is a premium, high-efficiency solar panel engineered to deliver exceptional energy generation for residential and commercial solar installations. Powered by AIKO’s advanced third-generation ABC cell technology, the panel achieves an impressive module efficiency of up to 24.4%. This allows it to generate more electricity from the available roof space, making it an excellent option for properties requiring powerful solar performance without installing an excessive number of panels.
