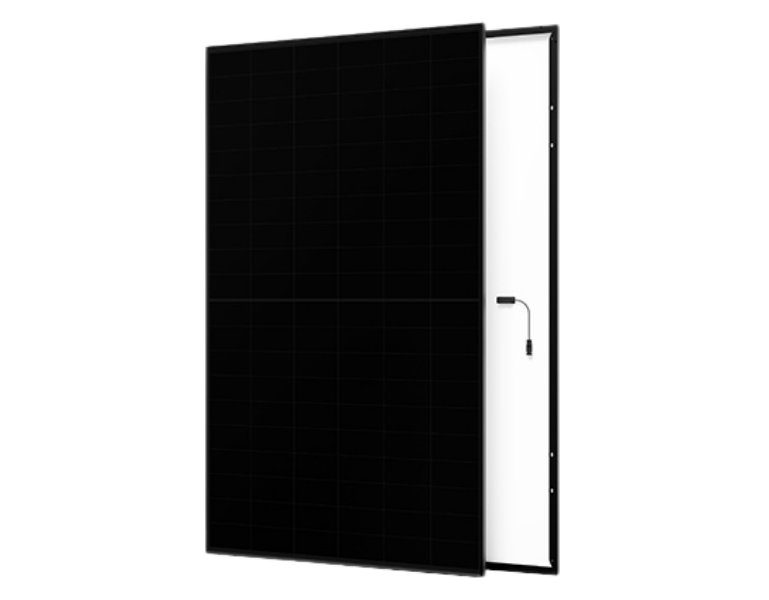

AIKO NEOSTAR 500W

Solar Panel

AIKO NEOSTAR 500W

The AIKO NEOSTAR 2S60 500W AIKO-A500-MAH60Mb is a premium, high-performance solar panel designed to deliver reliable energy generation for residential and commercial solar installations. Powered by AIKO’s advanced N-type ABC cell technology, this panel produces up to 500W of power with a module efficiency of 22.6%. Its front-grid-free cell design provides a clean, modern appearance while maximising the active light-capturing area of the panel.

  • 500W Output with 22.6% Efficiency
  • Partial Shading Optimisation
  • Full-Black Rooftop Design

AIKO NEOSTAR 500W

High-efficiency solar generation with N-Type ABC technology and a sleek, full-black finish.

Overview

The AIKO NEOSTAR 2S 500W is a solar panel designed to combine strong power output with a clean rooftop appearance. Using N-Type All Back Contact (ABC) cell technology, it delivers a rated output of 500W and a module efficiency of 22.6%. Its full-black design offers a consistent finish for homeowners who want their solar installation to complement their property. aikosolar.com

Part of AIKO’s second-generation ABC range, the panel incorporates partial shading optimisation, micro-crack resistance and high-temperature restriction features. These technologies are intended to address common challenges affecting solar performance, including uneven sunlight, cell damage and localised heating. Partial shading optimisation can help reduce shading-related losses, although positioning panels in unobstructed sunlight remains important. AIKO, Find Your Power

For long-term ownership, the panel comes with a 25-year product warranty and a 30-year linear power warranty, subject to the applicable warranty terms. The performance warranty specifies a maximum degradation of 1% in the first year and 0.35% annually thereafter, with a minimum warranted output of 88.85% at the end of year 30. This covers the panel’s power performance under defined conditions, rather than guaranteeing a household’s annual energy generation.

Technical Specifications

Model number
AIKO-A500-MAH60Mb
Rated maximum power
500W
Module efficiency
22.6%
Cell technology
N-Type ABC — All Back Contact
Module construction
Single glass with weather-resistant backsheet
Number of cells
120, arranged 6 × 20
Maximum power voltage — Vmp
37.90V
Maximum power current — Imp
13.20A
Open-circuit voltage — Voc
45.02V
Short-circuit current — Isc
14.05A
Maximum system voltage
1,500V DC
Maximum series fuse rating
25A
Operating temperature
−40°C to +85°C
Power temperature coefficient
−0.26%/°C
Front glass
3.2mm tempered glass
Junction box
IP68, with 3 bypass diodes
Product warranty
25 years
Linear performance warranty
30 years
